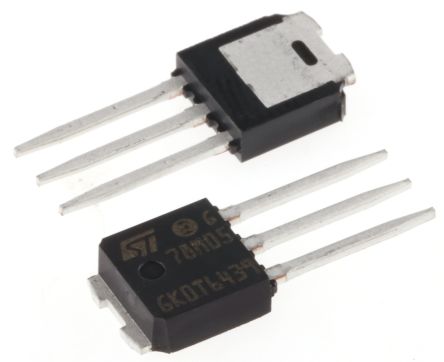

STMicroelectronics L78M05CDT-TR
артикул L78M05CDT-TR
STMicroelectronics
производитель
7805 based precision 5V fixed regulator with output current of up to 500mA and wide temperature operating range of 0В°C to 150В°C.
Datasheet
PDF | 1 мб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Type
Standard
Number of Outputs
1
Polarity
Positive
Accuracy (%)
В±4
Output Type
Fixed
Output Voltage (V)
5
Maximum Output Current (A)
0.5
Maximum Input Voltage (V)
35
Line Regulation
100mV
Load Regulation
100mV
Maximum Quiescent Current (mA)
6
Junction to Ambient
100В°C/W
Junction to Case
8В°C/W
Special Features
Current Limit; Safe Area Protection; Short Circuit Protection; Thermal Shutdown Protection
Minimum Operating Temperature (В°C)
0
Maximum Operating Temperature (В°C)
150
Supplier Temperature Grade
Extended
Packaging
Tape and Reel
Supplier Package
DPAK
Pin Count
3
Standard Package Name
TO-252
Mounting
Surface Mount
Package Height
2.4(Max)
Package Length
6.6(Max)
Package Width
6.2(Max)
PCB changed
2
Tab
Tab
Lead Shape
Gull-wing
Показать все
Описание
Use the standard L78M05CDT-TR linear regulator from STMicroelectronics to maintain a constant output voltage. Its typical dropout voltage at current is 2@350mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a voltage no larger than 35 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 100mV and line regulation of 100mV your circuit is capable of maintaining a constant voltage level at your output. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 В°C and a maximum of 150 В°C.
