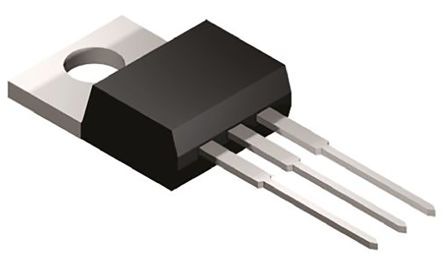

STMicroelectronics L78S12CV
артикул L78S12CV
STMicroelectronics
производитель
Standard Regulator Pos 12V 2A 3-Pin(3+Tab) TO-220AB Tube
Datasheet
PDF | 1 мб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Type
Standard
Number of Outputs
1
Polarity
Positive
Output Type
Fixed
Output Voltage (V)
12
Maximum Output Current (A)
2
Minimum Input Voltage (V)
15
Maximum Input Voltage (V)
35
Line Regulation
240mV
Load Regulation
240mV
Maximum Quiescent Current (mA)
8
Junction to Ambient
50В°C/W
Junction to Case
5В°C/W
Special Features
Thermal Shutdown Protection; Short Circuit Protection; Safe Area Protection; Current Limit
Minimum Operating Temperature (В°C)
0
Maximum Operating Temperature (В°C)
150
Supplier Temperature Grade
Extended
Packaging
Tube
Supplier Package
TO-220AB
Pin Count
3
Standard Package Name
TO-220
Mounting
Through Hole
Package Height
9.15(Max)
Package Length
10.4(Max)
Package Width
4.6(Max)
PCB changed
3
Tab
Tab
Lead Shape
Through Hole
Показать все
Описание
Keep calm and stay stable by implementing this standard L78S12CV linear regulator developed by STMicroelectronics. This voltage regulation device&s;s single output can produce a current up to 2 A. Using the part will provide the power your application needs by requiring a voltage only of 15 V and not exceeding a voltage of 35 V. With a fixed output that has a voltage of 12 V, this is power management at its best. Users like the load regulation of 240mV and line regulation of 240mV. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 В°C and a maximum of 150 В°C.
