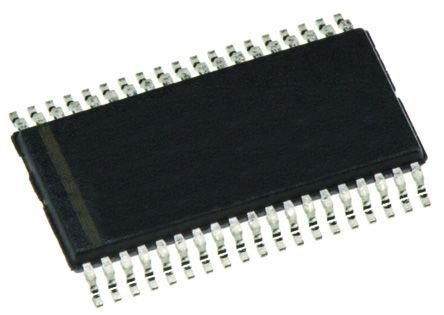

Texas Instruments THS4524IDBTR
артикул THS4524IDBTR
Texas Instruments
производитель
Op Amp Quad Low Power Amplifier R-R O/P В±2.7V/5.4V 38-Pin TSSOP T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.33.00.01
SVHC
Yes
Automotive
No
PPAP
No
Type
Low Power Amplifier
Manufacturer Type
Low Power Amplifier
Number of Channels per Chip
4
Rail to Rail
Rail to Rail Output
Maximum Input Offset Voltage (mV)
2@5V
Minimum Single Supply Voltage (V)
2.7
Typical Single Supply Voltage (V)
5
Maximum Single Supply Voltage (V)
5.4
Minimum Dual Supply Voltage (V)
В±1.35
Maximum Dual Supply Voltage (V)
В±2.7
Maximum Input Offset Current (uA)
0.00006@5V
Maximum Input Bias Current (uA)
0.9@5V
Typical Output Current (mA)
100(Max)
Power Supply Type
Dual; Single
Typical Slew Rate (V/us)
600@5V
Typical Input Noise Voltage Density (nV/rtHz)
4.6@5V
Typical Voltage Gain (dB)
119
Typical Noninverting Input Current Noise Density (pA/rtHz)
0.6@5V
Minimum PSRR (dB)
80
Minimum CMRR (dB)
80
Minimum CMRR Range (dB)
80 to 85
Typical Gain Bandwidth Product (MHz)
95
Typical Settling Time (ns)
10
Shut Down Support
No
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Supplier Temperature Grade
Industrial
Packaging
Tape and Reel
Pin Count
38
Standard Package Name
SOP
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
9.8(Max)
Package Width
4.5(Max)
PCB changed
38
Lead Shape
Gull-wing
Показать все
Описание
Increase functionality to your instrumentation with this general purpose amplifier THS4524IDBTR OP amp from Texas Instruments. It has a minimum dual supply voltage of В±1.5 V and maximum of В±2.75 V. This op amp has a temperature range of -40 В°C to 85 В°C. This device uses one or two power supplies. It has a single channel per chip.
