STMicroelectronics TL072CDT
артикул TL072CDT
STMicroelectronics
производитель
Op Amp Dual Low Noise Amplifier В±18V 8-Pin SO N T/R
Datasheet
PDF | 385 кб
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.33.00.01
Automotive
No
PPAP
No
Type
Low Noise Amplifier
Manufacturer Type
Low Noise Amplifier
Number of Channels per Chip
2
Process Technology
BiFET
Maximum Input Offset Voltage (mV)
10@В±15V
Minimum Dual Supply Voltage (V)
В±3
Typical Dual Supply Voltage (V)
В±5; В±9; В±12; В±15
Maximum Dual Supply Voltage (V)
В±18
Maximum Input Offset Current (uA)
0.0001@В±15V
Typical Input Bias Current (uA)
0.00002@В±15V
Maximum Input Bias Current (uA)
0.0002@В±15V
Maximum Quiescent Current (mA)
2.5@В±15V
Power Supply Type
Dual
Typical Slew Rate (V/us)
16@В±15V
Typical Input Noise Voltage Density (nV/rtHz)
15@В±15V
Input Offset Voltage Drift (uV/В°C)
10(Typ)
Typical Voltage Gain (dB)
106.02
Minimum CMRR (dB)
70
Minimum CMRR Range (dB)
70 to 71
Typical Gain Bandwidth Product (MHz)
4
Shut Down Support
No
Minimum Operating Temperature (В°C)
0
Maximum Operating Temperature (В°C)
70
Packaging
Tape and Reel
Pin Count
8
Standard Package Name
SOP
Supplier Package
SO N
Mounting
Surface Mount
Package Height
1.65(Max)
Package Length
5(Max)
Package Width
4(Max)
PCB changed
8
Lead Shape
Gull-wing
Показать все
Описание
This general purpose amplifier TL072CDT OP amp from STMicroelectronics is a simple circuit component used for signal amplification. Its typical dual supply voltage is В±5|В±9|В±12|В±15 V, with a minimum of В±3 V and maximum of В±18 V. This op amp has a minimum operating temperature of 0 В°C and a maximum of 70 В°C. This device is made with bifet technology. It has 2 channels per chip. This device uses dual power supplies.
Похожие товары

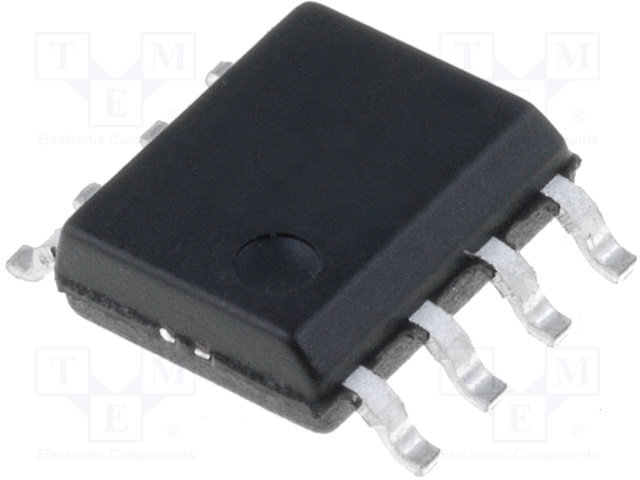

Texas Instruments
