Samtec TSW-103-23-T-S
артикул TSW-103-23-T-S
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8536.69.40.40
Automotive
No
PPAP
No
Type
Unshrouded Header
Gender
HDR
Number of Contacts
3
Number of Rows
1
Termination Method
Solder
Terminal Pitch (mm)
2.54
Body Orientation
Straight
Maximum Current Rating (A)
6.3/Contact
Maximum Voltage Rating
550VAC
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
105
Packaging
Bag
Product Length (mm)
7.62
Product Depth (mm)
2.54
Product Height (mm)
8.38
Tail Length (mm)
2.92
Mounting
Through Hole
Показать все
Описание
Mounting this unshrouded TSW-103-23-T-S header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. It has a header type gender. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. TSW-103-23-T-S is housed in black polyester. It uses the solder termination method. This product is 7.62 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 105 В°C.
Похожие товары
Samtec
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Samtec
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
Molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole KKВ® Bag
TE Connectivity
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Package
Samtec
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

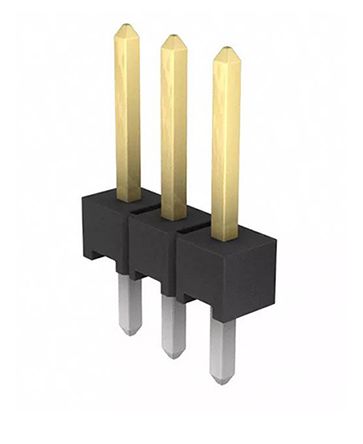

TE Connectivity
