STMicroelectronics TSV611ILT
артикул TSV611ILT
STMicroelectronics
производитель
Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R
Datasheet
PDF | 714 кб
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.33.00.01
Automotive
No
PPAP
No
Type
General Purpose Amplifier
Manufacturer Type
General Purpose Amplifier
Number of Channels per Chip
1
Rail to Rail
Rail to Rail Input/Output
Process Technology
CMOS
Output Type
CMOS
Maximum Input Offset Voltage (mV)
4@5V
Minimum Single Supply Voltage (V)
1.5
Typical Single Supply Voltage (V)
5; 3
Maximum Single Supply Voltage (V)
5.5
Maximum Input Offset Current (uA)
0.00001@5V
Maximum Input Bias Current (uA)
0.00001@5V
Maximum Supply Current (mA)
0.014@5V
Typical Output Current (mA)
63@5V
Power Supply Type
Single
Typical Slew Rate (V/us)
0.04@5V
Typical Input Noise Voltage Density (nV/rtHz)
105@5V
Typical Voltage Gain (dB)
93
Minimum CMRR (dB)
64
Minimum CMRR Range (dB)
60 to 65
Typical Gain Bandwidth Product (MHz)
0.12
Shut Down Support
No
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tape and Reel
Pin Count
5
Standard Package Name
SOT-23
Supplier Package
SOT-23
Mounting
Surface Mount
Package Height
1.05
Package Length
2.9
Package Width
1.6
PCB changed
5
Lead Shape
Gull-wing
Показать все
Описание
If you need your circuit to perform basic mathematical operations such as addition, subtraction, differentiation, and integration then general purpose amplifier TSV611ILT OP amp from STMicroelectronics is perfect for you! This op amp has a minimum operating temperature of -40 В°C and a maximum of 85 В°C. It has a single channel per chip. This device uses a single power supply. This device is made with CMOS technology.
Похожие товары
STMicroelectronics
Op Amp Single Low Voltage Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R
Texas Instruments

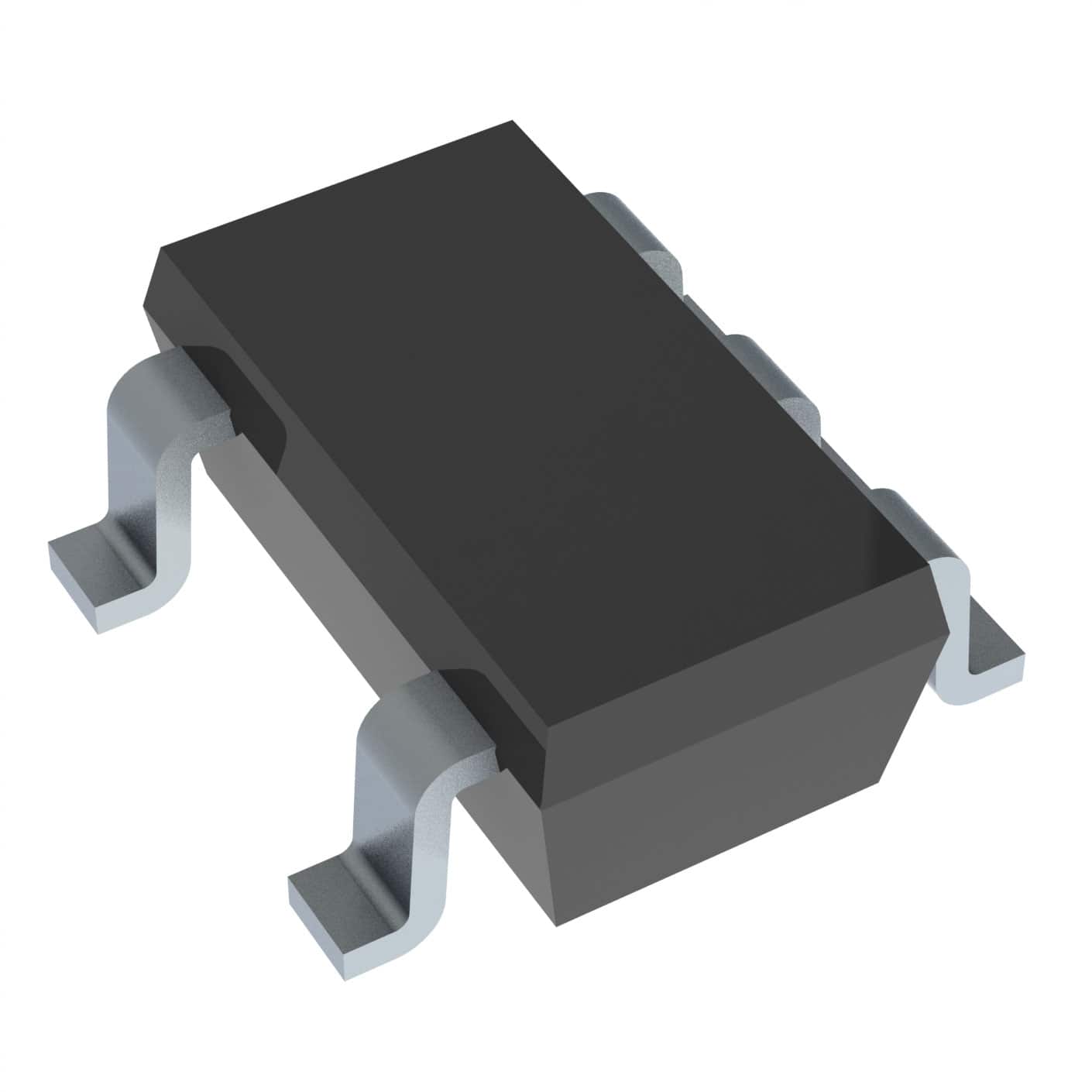

Op Amp Single Low Power Amplifier R-R I/O 5.5V 5-Pin SOT-23 T/R
