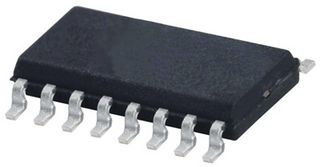

Texas Instruments CD74HCT174M
артикул CD74HCT174M
Texas Instruments
производитель
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16-Pin SOIC Tube
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
HCT
Logic Function
D-Type Bus Interface
Number of Channels per Chip
6
Number of Elements per Chip
1
Number of Element Inputs
6
Number of Element Outputs
6
Bus Hold
No
Set/Reset
Master Reset
Polarity
Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
40@4.5V
Absolute Propagation Delay Time (ns)
66
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
4
Maximum High Level Output Current (mA)
-4
Minimum Operating Supply Voltage (V)
4.5
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (mA)
0.008
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Military
Packaging
Tube
Standard Package Name
SOP
Pin Count
16
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
10(Max)
Package Width
4(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
Look no further than Texas Instruments&s; CD74HCT174M flip flop device, a great device for storing simple state information. It has a single-ended output signal. This flip flop has a minimum operating temperature of -55 В°C and a maximum of 125 В°C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 6 channels per chip.
