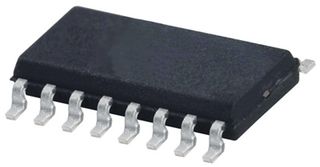

Texas Instruments CD74HC283MT
артикул CD74HC283MT
Texas Instruments
производитель
Binary Full Adder Single-Element 4-Bit 16-Pin SOIC T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
HC
Logic Function
Binary Full Adder
Number of Elements per Chip
1
Number of Bits
4
Maximum Propagation Delay Time @ Maximum CL (ns)
210@2V; 42@4.5V; 36@6V
Absolute Propagation Delay Time (ns)
345
Process Technology
CMOS
Maximum Low Level Output Current (mA)
5.2
Maximum High Level Output Current (mA)
-5.2
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
6
Maximum Quiescent Current (mA)
0.008
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Military
Packaging
Tape and Reel
Pin Count
16
Supplier Package
SOIC
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
10(Max)
Package Width
4(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
Many of your circuits will require the logic unit to perform different arithmetic operations. Texas Instruments&s; CD74HC283MT logic adder and subtractor allows it to perform more complicated bitwise operations such as addition and subtraction. This logic device has a minimum operating temperature of -55 В°C and a maximum of 125 В°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
