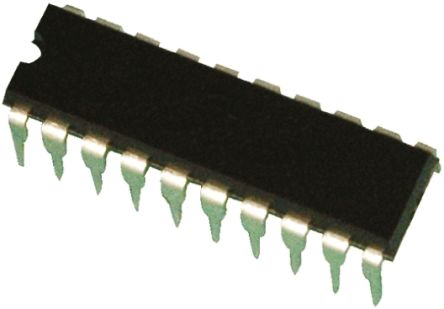

Texas Instruments CD74HC273E
артикул CD74HC273E
Texas Instruments
производитель
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin PDIP Tube
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Logic Family
HC
Logic Function
D-Type Bus Interface
Number of Channels per Chip
8
Number of Elements per Chip
1
Number of Element Inputs
8
Number of Element Outputs
8
Bus Hold
No
Set/Reset
Master Reset
Polarity
Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
150@2V; 30@4.5V; 26@6V
Absolute Propagation Delay Time (ns)
255
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
5.2
Maximum High Level Output Current (mA)
-5.2
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
5; 3.3; 2.5
Maximum Operating Supply Voltage (V)
6
Maximum Quiescent Current (mA)
0.008
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Military
Packaging
Tube
Standard Package Name
DIP
Supplier Package
PDIP
Pin Count
20
Mounting
Through Hole
Package Height
5.08(Max) - 0.51(Min)
Package Length
26.92(Max)
Package Width
6.6(Max)
PCB changed
20
Lead Shape
Through Hole
Показать все
Описание
Thanks to Texas Instruments and their CD74HC273E flip flop device, you can ensure that your state information is saved and available for later use. It has a single-ended output signal. This flip flop has an operating temperature range of -55 В°C to 125 В°C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
