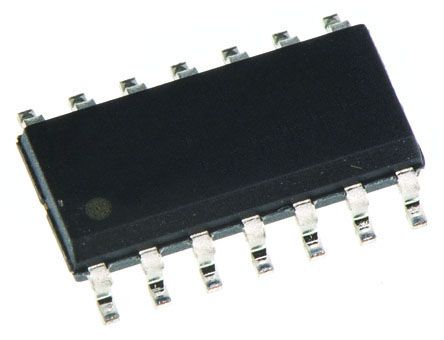

Texas Instruments SN74HC74NSR
артикул SN74HC74NSR
Texas Instruments
производитель
Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOP T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
HC
Logic Function
D-Type
Number of Channels per Chip
2
Number of Elements per Chip
2
Number of Element Inputs
1
Number of Element Outputs
1
Bus Hold
No
Set/Reset
Set/Reset
Polarity
Inverting/Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
35@4.5V; 30@6V; 175@2V
Absolute Propagation Delay Time (ns)
290
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
5.2
Maximum High Level Output Current (mA)
-5.2
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
6
Maximum Quiescent Current (mA)
0.004
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
14
Supplier Package
SOP
Mounting
Surface Mount
Package Height
1.85(Max)
Package Length
10.5(Max)
Package Width
5.6(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
If you are looking for a simple device that can store state information, look no further than Texas Instruments&s; SN74HC74NSR flip flop device. It has a differential output signal. This flip flop has an operating temperature range of -40 В°C to 85 В°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 2 channels per chip.
