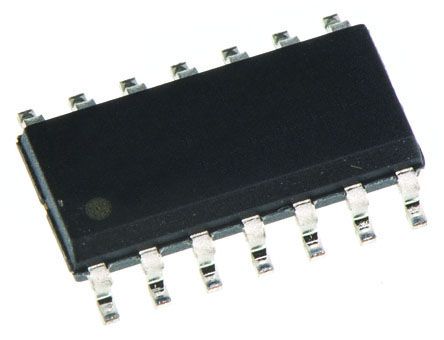

Texas Instruments SN74AC04PW
артикул SN74AC04PW
Texas Instruments
производитель
Inverter 6-Element CMOS 14-Pin TSSOP Tube
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
AC
Logic Function
Inverter
Number of Elements per Chip
6
Maximum Propagation Delay Time @ Maximum CL (ns)
9@3.3V; 7@5V
Absolute Propagation Delay Time (ns)
10
Process Technology
CMOS
Output Type
Push-Pull
Maximum Low Level Output Current (mA)
24
Maximum High Level Output Current (mA)
-24
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
6
Maximum Quiescent Current (uA)
2
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tube
Pin Count
14
Supplier Package
TSSOP
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
5.1(Max)
Package Width
4.5(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
The SN74AC04PW inverting Schmitt trigger, developed by Texas Instruments, is a great way to remove noise from an analog signal and essentially convert it into a digital signal. This inverting Schmitt trigger has a minimum operating temperature of -40 В°C and a maximum of 85 В°C. This device comes in tube packaging. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
