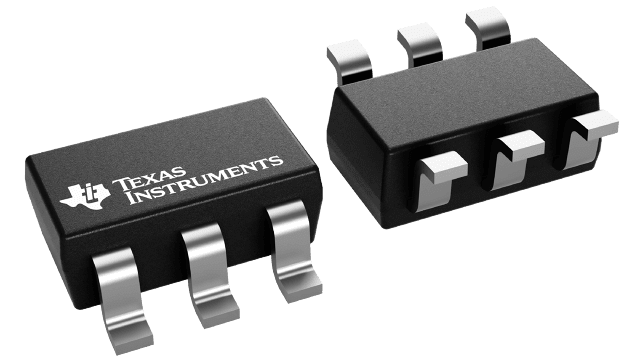

Texas Instruments SN74LVC2G04DCKR
артикул SN74LVC2G04DCKR
Texas Instruments
производитель
Inverter 2-Element CMOS 6-Pin SC-70 T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Logic Family
LVC
Logic Function
Inverter
Number of Elements per Chip
2
Maximum Propagation Delay Time @ Maximum CL (ns)
4.1@3.3V; 3.2@5V
Absolute Propagation Delay Time (ns)
8
Process Technology
CMOS
Output Type
Push-Pull
Maximum Low Level Output Current (mA)
32
Maximum High Level Output Current (mA)
-32
Minimum High Level Output Voltage (V)
1.2
Maximum Low Level Output Voltage (V)
0.55
Minimum Operating Supply Voltage (V)
1.65
Typical Operating Supply Voltage (V)
1.8; 2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (uA)
10
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Commercial
Packaging
Tape and Reel
Pin Count
6
Supplier Package
SC-70
Standard Package Name
SOT
Mounting
Surface Mount
Package Height
1(Max)
Package Length
2.15(Max)
Package Width
1.4(Max)
PCB changed
6
Lead Shape
Gull-wing
Показать все
Описание
Texas Instruments brings you their latest SN74LVC2G04DCKR inverting Schmitt trigger, from which you can convert an analog signal into a digital signal. This inverting Schmitt trigger has a minimum operating temperature of -40 В°C and a maximum of 125 В°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
