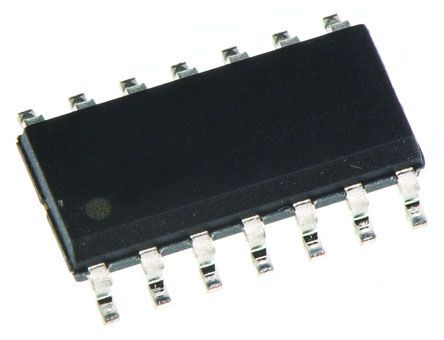

Texas Instruments SN74LV06APWR
артикул SN74LV06APWR
Texas Instruments
производитель
Buffer/Driver 6-CH Inverting Open Drain CMOS 14-Pin TSSOP T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
LV
Logic Function
Buffer/Driver
Number of Elements per Chip
6
Number of Channels per Chip
6
Number of Inputs per Chip
6
Number of Input Enables per Chip
0
Number of Outputs per Chip
6
Number of Output Enables per Chip
0
Bus Hold
No
Polarity
Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)
10.6@3.3V; 7.5@5V; 15.2@2.5V
Absolute Propagation Delay Time (ns)
18
Process Technology
CMOS
Input Signal Type
Single-Ended
Output Type
Open Drain
Maximum Low Level Output Current (mA)
16
Maximum High Level Output Current (mA)
-0.002
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
5.5
Tolerant I/Os (V)
5 Inputs
Maximum Quiescent Current (uA)
20
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Commercial
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
14
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
5.1(Max)
Package Width
4.5(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
By driving the input to the transmission line this SN74LV06APWR buffer and line driver by Texas Instruments will amplify any signal. With an open drain output, this is power management at its best. This line driver has a minimum operating temperature of -40 В°C and a maximum of 125 В°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 6 channels per chip. This inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
