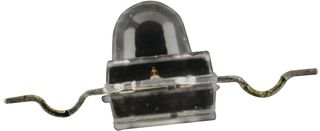

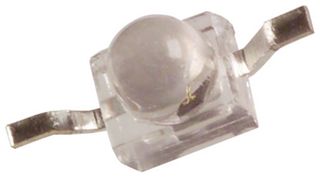

Lumex SSL-LXA228GC-TR11
артикул SSL-LXA228GC-TR11
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8541.40.20.00
Automotive
No
PPAP
No
Type
Uni-Color
Category
Standard LED
Color
Green
Number of LEDs
1
LED Material
GaP
Lens Shape Type
Circular
Lens Dimensions (mm)
1.9x1.9x1.4
Lens Appearance
Water Clear
Mounting Orientation
Top Mount
Intensity
30mcd
Peak Wavelength (nm)
565
Viewing Angle (В°)
25
Maximum Forward Current (mA)
25
Maximum Forward Voltage (V)
2.6
Reverse Voltage (V)
5(Min)
Maximum Power Dissipation (mW)
100
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Lead Standoff
No
Supplier Color
Green
High Power
No
High Brightness
No
Packaging
Tape and Reel
Supplier Package
SMD
Pin Count
2
Standard Package Name
SMD
Mounting
Surface Mount
Package Height
2.8
Package Length
2.5
Package Width
2
PCB changed
2
Показать все
Описание
LED Uni-Color Green 565nm 2-Pin SMD T/R
Green 1.9 mm 25° Water Clear 30 mcd 2.2 V Axial Surface Mount LED
SSL-LXA228GC-TR11, QuasarBrite Series Green LED, 565 nm, Round Lens SMD package | Lumex SSL-LXA228GC-TR11
2.5mm AXIAL LED,565 GRN CLR,GULL WING TR
LED Panel Mount Indicators LED PMI
LED, GREEN, 1.9MM, 30MCD, 565NM
LED, GREEN, 1.9MM, 30MCD, 565NM; LED Colour: Green; LED Mounting: SMD; LED Case Size: 1.9mm; Forward Current If: 20mA; Forward Voltage: 2.2V; Wavelength Typ: 565nm; Luminous Intensity: 30mcd; Viewing Angle: 25°; Lens Shape: Dome; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (27-Jun-2018); Bulb Size: 1.9mm
