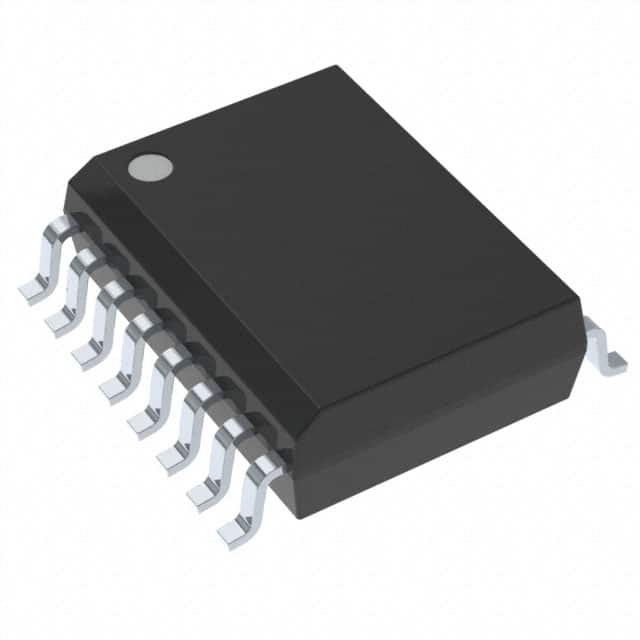

Texas Instruments PCA9546ADWR
артикул PCA9546ADWR
Texas Instruments
производитель
I2C Multiplexer 1-Element 4-IN 16-Pin SOIC T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Function
I2C Multiplexer
Configuration
1 x 4:1
Number of Elements per Chip
1
Number of Inputs per Chip
4
Number of Input Enables per Element
0
Number of Selection Inputs per Element
3
Number of Outputs per Chip
1
Number of Output Enables per Element
0
Polarity
Non-Inverting
Maximum Frequency (MHz)
0.4
Maximum Propagation Delay Time @ Maximum CL (ns)
1@2.3V to 5.5V
Absolute Propagation Delay Time (ns)
1
Input Signal Type
Single-Ended
Parity Invert Input
No
Output Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
6(Min)
Minimum Operating Supply Voltage (V)
2.3
Typical Operating Supply Voltage (V)
2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
5.5
Tolerant I/Os (V)
5.5 Inputs
Typical Quiescent Current (uA)
3
Maximum Quiescent Current (uA)
12
Propagation Delay Test Condition (pF)
50
Maximum On Resistance (Ohm)
16(Typ)
Power Supply Type
Single
Maximum Power Dissipation (mW)
400
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
16
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
2.35(Max)
Package Length
10.5(Max)
Package Width
7.6(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
Are you looking to organize numerous, complex electrical lines into a clean layout? Texas Instruments&s; PCA9546ADWR multiplexer is the perfect solution for you. This device has a maximum power dissipation of 400 mW. Its maximum power dissipation is 400 mW. This multiplexer has an operating temperature range of -40 В°C to 85 В°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a 1 x 4:1 configuration. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 5.5 V.
