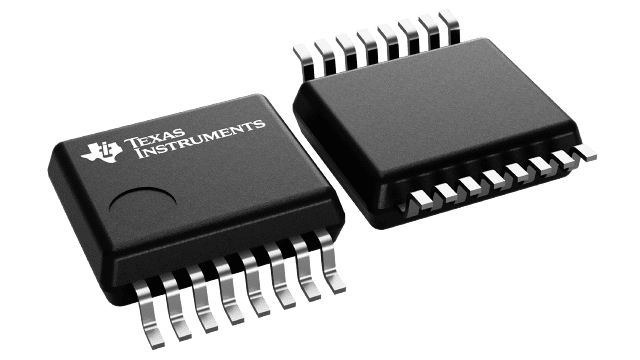

Texas Instruments PCA9534DW
артикул PCA9534DW
Texas Instruments
производитель
I2C/SMBus Interface 400kHz 5.5V 16-Pin SOIC Tube
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Number of I/Os
8
Number of Addresses
8
Manual Reset
No
Interface Type
I2C; SMBus
Interface Speed (kHz)
400
I2C Bus Interface Mode
Standard Mode; Fast Mode
Interrupt Output
Yes
Output Type
Open Drain
Minimum Operating Supply Voltage (V)
2.3
Maximum Operating Supply Voltage (V)
5.5
Maximum Sink Current per Bit (mA)
25
Maximum Source Current per Bit (mA)
-10
Maximum Quiescent Current (uA)
1
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Maximum ESD Protection Voltage (kV)
2@HBM/1@CDM/0.2@MM
Packaging
Tube
Pin Count
16
Standard Package Name
SOP
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
2.35(Max)
Package Length
10.5(Max)
Package Width
7.6(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
8-bit 2.3- to 5.5-V I2C/SMBus I/O expander with interrupt & config registers 16-SOIC -40 to 85
I/O EXPANDER, 8BIT, 400KHZ, SOIC-16; Configuration puce: 8bit; Fréquence de bus: 400kHz; Type d'interface CI: I2C, SM Bus; Tension, alimentation min.: 2.3V; Tension, alimentation max..: 5.5V; Type de boîtier d'interface: SOIC;
I/o Expander, 8Bit, 400Khz, Soic-16; Chip Configuration:8Bit; Bus Frequency:400Khz; Ic Interface Type:i2C, Smbus; Supply Voltage Min:2.3V; Supply Voltage Max:5.5V; Interface Case Style:soic; No. Of Pins:16Pins; No. Of I/o S:8I/o S; Rohs Compliant: Yes
