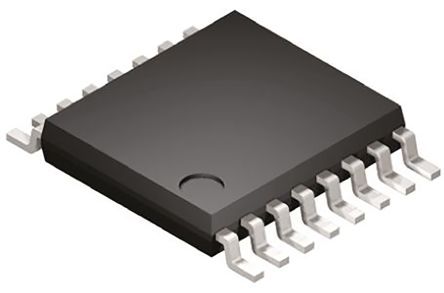

onsemi MC74HC4053ADG

артикул MC74HC4053ADG

onsemi

производитель

Analog Switch/Analog Multiplexer Triple 2:1 16-Pin SOIC Rail

По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.

Отправить запрос

Технические параметры

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

Active

HTS

8542.39.00.01

Automotive

PPAP

Type

Analog Switch; Analog Multiplexer

Configuration

Triple 2:1

Switch Architecture

SPDT

Multiplexer Architecture

2:1

Number of Channels per Chip

Number of Inputs per Chip

Number of Outputs per Chip

Chip Enable Signals

Yes

Polarity

Non-Inverting

Maximum Propagation Delay Bus to Bus (ns)

12@4.5V; 10@6V; 40@2V; 25@3V

Maximum Turn-On Time (ns)

245@2V

Maximum Turn-Off Time (ns)

160@2V

Maximum Frequency (25В°C) @ Vcc (MHz)

120@В±2.25V; 120@В±6V

Input Signal Type

Single

Output Signal Type

Single

Minimum Single Supply Voltage (V)

Typical Single Supply Voltage (V)

3; 5

Maximum Single Supply Voltage (V)

Minimum Dual Supply Voltage (V)

В±1

Typical Dual Supply Voltage (V)

В±3; В±5

Maximum Dual Supply Voltage (V)

В±6

Maximum Low Level Output Current (mA)

Maximum High Level Output Current (mA)

Maximum On Resistance (Ohm)

190@4.5V

Maximum On Resistance Range (Ohm)

150 to 250

Propagation Delay Test Condition (pF)

Power Supply Type

Single; Dual

Maximum Power Dissipation (mW)

500

Minimum Operating Temperature (В°C)

-55

Maximum Operating Temperature (В°C)

125

Supplier Temperature Grade

Automotive

Packaging

Rail

Pin Count

Standard Package Name

SOP

Supplier Package

SOIC

Mounting

Surface Mount

Package Height

1.5(Max)

Package Length

10(Max)

Package Width

4(Max)

PCB changed

Lead Shape

Gull-wing

Показать все

Описание

MC74HC4053ADG; Multiplexer/DemultiplexerTriple 2:1; 2 to 12V; 2 to 6V; 16-Pin SOIC

74HC Series 2 to 6 V Analog Multiplexer / Demultiplexer - SOIC-16

Analog Switch/Analog Multiplexer Triple 2:1 16-Pin SOIC Rail

74HC CMOS, SMD, 74HC4053, SOIC16; Multiplexer Configuration: 2: 1; No. of Circuits: 3Circuits; On State Resistance Max: 100ohm; Supply Voltage Range: 2V to 6V, 2V to 12V; Analogue Multiplexer Case: SOIC; No. of Pins: 16Pins; Operating Temperature Min: -55°C; Operating Temperature Max: 125°C; Product Range: -; Automotive Qualification Standard: -; MSL: -; SVHC: No SVHC (27-Jun-2018); Analogue Switch Case Style: SOIC; Base Number: 74; IC Generic Number: 74HC4053; Logic Case Style: SOIC; Logic Function Number: 744053G; Logic IC Base Number: 744053; Logic IC Function: Triple 2-Channel Analog Multiplexer/Demultiplexer; Logic Type: Analogue Multiplexer / Demultiplexer; No. of Inputs: 2; No. of Outputs: 6Outputs; On Resistance Rds(on): 80ohm; Operating Temperature Range: -55°C to +125°C; Output Current Max: 25mA; Supply Current: 80µA; Supply Voltage: 6V; Supply Voltage Max: 6V; Supply Voltage Min: 2V
