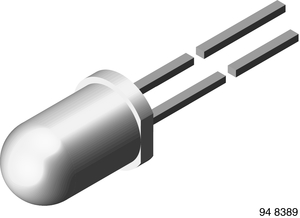

Vishay TSAL6100
TSAL6100 Series 950 nm 100 mA Through Hole Infrared Emitting Diode - T-1 3/4
INFRARED EMITTER 940NM T-1 3/4; Peak Wavelength:940nm; Angle of Half Intensity:10°; Diode Case Style:T-1 3/4 (5mm); Radiant Intensity (Ie):15mW/Sr; Rise Time:800ns; Fall Time tf:800ns; Forward Current If(AV):100mA; Forward Voltage VF Max:2.6V; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Automotive Qualification Standard:-; Product Range:-; MSL:-; No. of Pins:2Pins; Operating Temperature Range:-40°C to +85°C; Viewing Angle:10°; Wavelength Typ:950nm
IR EMITTER, 950NM; Wavelength, Typ:950nm; Power Dissipation:210mW; Forward Current:100mA; Voltage, Vf Max:1.6V; Viewing Angle:20°; Case Style:T-1 3/4; Operating Temperature Range:-55°C to +100°C; Current, If Max:200mA; Current, If Vf:100mA; External Diameter:5.8mm; External Length / Height:8.7mm; Half Angle:10°; LED / Lamp Size:5mm; Lead Diameter:0.5mm; Lead Length:25.7mm; Lead Spacing:2.54mm; Max Reverse Leakage Current:10µA; Peak Pulse Current:1.5A; Power, Radiometric:35mW; Radiant Intensity:130mW/Sr; Radiant Intensity, Max:400mW/Sr; Radiant Intensity, Min:80mW/Sr; Temp, Op. Max:100°C; Temp, Op. Min:-55°C; Temperature, Storage Max:100°C; Temperature, Storage Min:-55°C; Time, Fall:800ns; Time, Rise:800ns; Voltage, PIV Max:5V; Voltage, Vf Typ:1.35V; Wavelength, Peak:940nm
