Texas Instruments SN74HCT74D
артикул SN74HCT74D
Texas Instruments
производитель
Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOIC Tube
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
HCT
Logic Function
D-Type
Number of Channels per Chip
2
Number of Elements per Chip
2
Number of Element Inputs
1
Number of Element Outputs
1
Bus Hold
No
Set/Reset
Set/Reset
Polarity
Inverting/Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
25@5.5V; 28@4.5V
Absolute Propagation Delay Time (ns)
44
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
4
Maximum High Level Output Current (mA)
-4
Minimum Operating Supply Voltage (V)
4.5
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (mA)
0.004
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Supplier Temperature Grade
Commercial
Packaging
Tube
Standard Package Name
SOP
Pin Count
14
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
8.75(Max)
Package Width
4(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
Texas Instruments brings you their latest SN74HCT74D flip flop device, a simple yet effective method for storing your circuit&s;s state information. It has a differential output signal. This flip flop has a minimum operating temperature of -40 В°C and a maximum of 85 В°C. This device comes in tube packaging. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 2 channels per chip.
Похожие товары
onsemi

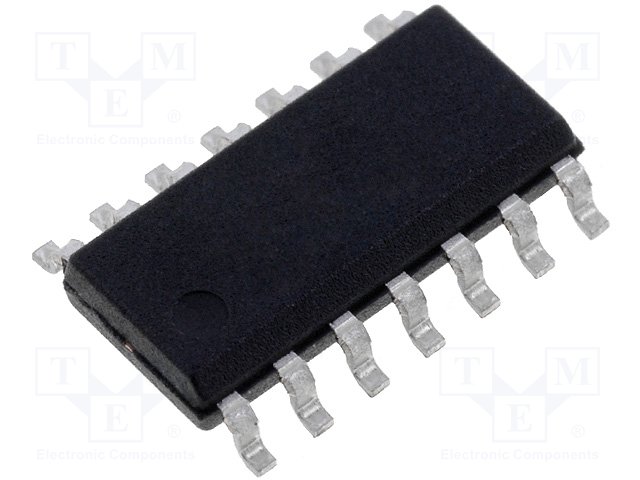

Hct Series, Dual Positive Edge Triggered D Flip-flop, Complementary Output, PDSO14, SOIC-14
