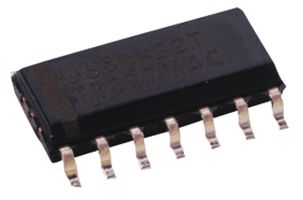

Texas Instruments SN74LV74ADR
артикул SN74LV74ADR
Texas Instruments
производитель
Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOIC T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
LV
Logic Function
D-Type
Number of Channels per Chip
2
Number of Elements per Chip
2
Number of Element Inputs
1
Number of Element Outputs
1
Bus Hold
No
Set/Reset
Set/Reset
Polarity
Inverting/Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
20@2.5V; 15.4@3.3V; 9.3@5V
Absolute Propagation Delay Time (ns)
17.5
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
12
Maximum High Level Output Current (mA)
-12
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
2.5; 3.3; 5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (mA)
0.02
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
14
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
8.75(Max)
Package Width
4(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
Think of Texas Instruments&s; SN74LV74ADR flip flop device in the event you need to save or retrieve your circuit&s;s state information quickly. It has a differential output signal. This flip flop has a minimum operating temperature of -40 В°C and a maximum of 125 В°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
