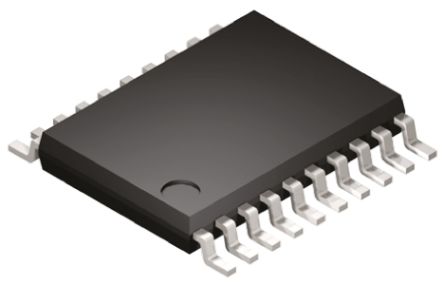

Texas Instruments SN74LVC574APWR
артикул SN74LVC574APWR
Texas Instruments
производитель
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
LVC
Logic Function
D-Type Bus Interface
Number of Channels per Chip
8
Number of Elements per Chip
1
Number of Element Inputs
8
Number of Element Outputs
8
Number of Output Enables per Element
1
Bus Hold
No
Polarity
Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
7.8@2.7V; 6.8@3.3V
Absolute Propagation Delay Time (ns)
21.6
Process Technology
CMOS
Input Signal Type
Single-Ended
Output Type
3-State
Maximum Low Level Output Current (mA)
24
Maximum High Level Output Current (mA)
-24
Minimum Operating Supply Voltage (V)
1.65
Typical Operating Supply Voltage (V)
1.8; 2.5; 3.3
Maximum Operating Supply Voltage (V)
3.6
Maximum Quiescent Current (mA)
0.0015
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
20
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
6.6(Max)
Package Width
4.5(Max)
PCB changed
20
Lead Shape
Gull-wing
Показать все
Описание
The SN74LVC574APWR flip flop device from Texas Instruments is designed specifically to save basic state information within your circuit. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 В°C to 125 В°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 8 channels per chip.
