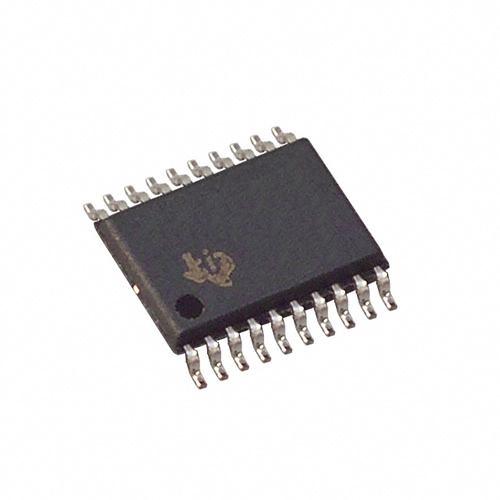

Texas Instruments SN74AHCT573DWR
артикул SN74AHCT573DWR
Texas Instruments
производитель
Latch Transparent 3-ST 8-CH D-Type 20-Pin SOIC T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Type
D-Type
Logic Family
AHCT
Latch Mode
Transparent
Number of Channels per Chip
8
Number of Elements per Chip
1
Number of Inputs per Chip
8
Number of Input Enables per Element
1
Number of Selection Inputs per Element
0
Number of Outputs per Chip
8
Number of Output Enables per Element
1
Bus Hold
No
Set/Reset
No
Polarity
Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)
8@5V
Absolute Propagation Delay Time (ns)
12
Process Technology
CMOS
Output Type
3-State
Maximum Low Level Output Current (mA)
8
Maximum High Level Output Current (mA)
-8
Minimum Operating Supply Voltage (V)
4.5
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
5.5
Tolerant I/Os (V)
5 Inputs
Maximum Quiescent Current (uA)
4
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Commercial
Packaging
Tape and Reel
Pin Count
20
Supplier Package
SOIC
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
2.35(Max)
Package Length
13(Max)
Package Width
7.6(Max)
PCB changed
20
Lead Shape
Gull-wing
Показать все
Описание
This d-type SN74AHCT573DWR low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 В°C to 125 В°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
