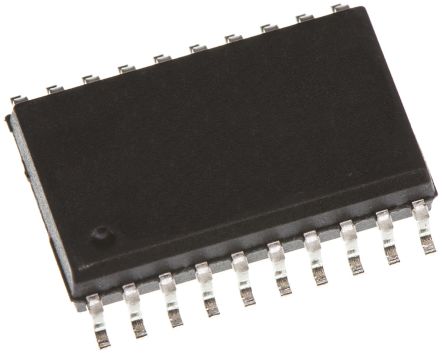

Texas Instruments SN74HCT373DWR
артикул SN74HCT373DWR
Texas Instruments
производитель
Latch Transparent 3-ST 8-CH D-Type 20-Pin SOIC T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Type
D-Type
Logic Family
HCT
Latch Mode
Transparent
Number of Channels per Chip
8
Number of Elements per Chip
1
Number of Inputs per Chip
8
Number of Input Enables per Element
1
Number of Selection Inputs per Element
0
Number of Outputs per Chip
8
Number of Output Enables per Element
1
Bus Hold
No
Set/Reset
No
Polarity
Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)
52@4.5V; 47@5.5V
Absolute Propagation Delay Time (ns)
65
Process Technology
CMOS
Output Type
3-State
Maximum Low Level Output Current (mA)
6
Maximum High Level Output Current (mA)
-6
Minimum Operating Supply Voltage (V)
4.5
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
5.5
Maximum Quiescent Current (uA)
8
Propagation Delay Test Condition (pF)
150
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Supplier Temperature Grade
Commercial
Packaging
Tape and Reel
Pin Count
20
Supplier Package
SOIC
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
2.35(Max)
Package Length
13(Max)
Package Width
7.6(Max)
PCB changed
20
Lead Shape
Gull-wing
Показать все
Описание
Texas Instruments&s; d-type SN74HCT373DWR low-level latch is an electronic circuit that can store state information and is used as data storage elements. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 В°C and a maximum of 85 В°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
