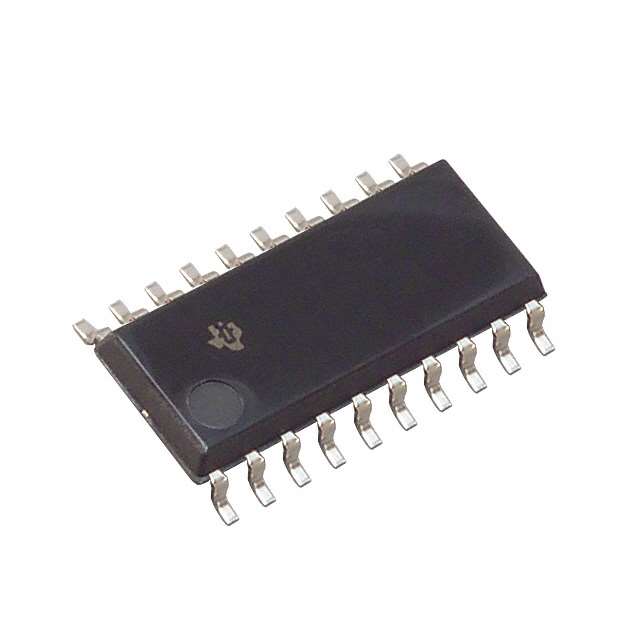

Texas Instruments SN74HC574PWR
артикул SN74HC574PWR
Texas Instruments
производитель
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin TSSOP T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
HC
Logic Function
D-Type Bus Interface
Number of Channels per Chip
8
Number of Elements per Chip
1
Number of Element Inputs
8
Number of Element Outputs
8
Number of Output Enables per Element
1
Bus Hold
No
Polarity
Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
46@6V; 53@4.5V; 265@2V
Absolute Propagation Delay Time (ns)
330
Process Technology
CMOS
Input Signal Type
Single-Ended
Output Type
3-State
Maximum Low Level Output Current (mA)
7.8
Maximum High Level Output Current (mA)
-7.8
Minimum Operating Supply Voltage (V)
2
Typical Operating Supply Voltage (V)
5
Maximum Operating Supply Voltage (V)
6
Maximum Quiescent Current (mA)
0.008
Propagation Delay Test Condition (pF)
150
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
20
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
6.6(Max)
Package Width
4.5(Max)
PCB changed
20
Lead Shape
Gull-wing
Показать все
Описание
Store state information by enabling this SN74HC574PWR flip flop device from Texas Instruments. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 В°C to 85 В°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
