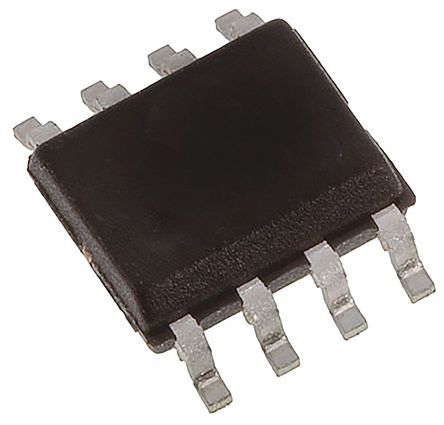

Texas Instruments CD40107BM96
артикул CD40107BM96
Texas Instruments
производитель
NAND Buffer/Driver Gate 2-Element 2-IN CMOS 8-Pin SOIC T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Logic Family
CD4000
Logic Function
NAND Buffer/Driver
Number of Elements per Chip
2
Number of Element Inputs
2-IN
Number of Output Enables per Element
0
Number of Selection Inputs per Element
0
Number of Element Outputs
1
Maximum Propagation Delay Time @ Maximum CL (ns)
100@15V; 120@10V; 200@5V
Absolute Propagation Delay Time (ns)
200
Process Technology
CMOS
Output Type
Open Drain
Maximum Low Level Output Current (mA)
89(Min)
Minimum Operating Supply Voltage (V)
3
Typical Operating Supply Voltage (V)
15; 12; 9; 5; 3.3
Maximum Operating Supply Voltage (V)
18
Typical Quiescent Current (uA)
0.04
Maximum Quiescent Current (uA)
20
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
125
Packaging
Tape and Reel
Standard Package Name
SOP
Pin Count
8
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
5(Max)
Package Width
3.98(Max)
PCB changed
8
Lead Shape
Gull-wing
Показать все
Описание
Texas Instruments brings you their latest CD40107BM96 logic gates, from which you can build and implement logical functions. With an open drain output, this is power management at its best. This gate has an operating temperature range of -55 В°C to 125 В°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
