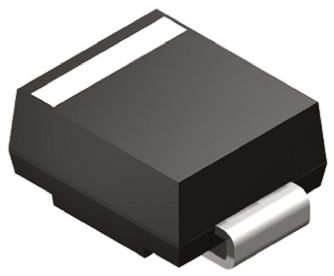

Bourns SMBJ5.0CA
артикул SMBJ5.0CA
Bourns
производитель
TVS Diode Single Bi-Dir 5V 600W 2-Pin SMB T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8541.10.00.80
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Configuration
Single
Direction Type
Bi-Directional
Number of Elements per Chip
1
Minimum Breakdown Voltage (V)
6.4
Maximum Clamping Voltage (V)
9.2
Maximum Reverse Stand-Off Voltage (V)
5
Maximum Peak Pulse Current (A)
65.3
Maximum Reverse Leakage Current (uA)
1600
Test Current (mA)
10
Peak Pulse Power Dissipation (W)
600(Min)
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
150
Maximum Power Dissipation (mW)
5000
Product Weight (g)
0.093
Packaging
Tape and Reel
Supplier Package
SMB
Pin Count
2
Standard Package Name
DO-214-AA
Mounting
Surface Mount
Package Height
2.2(Max)
Package Length
4.57(Max)
Package Width
3.94(Max)
PCB changed
2
Lead Shape
J-Lead
Показать все
Описание
A 5.0V, 600W, bi-directional, SMB pkg TVS Diode | Bourns SMBJ5.0CA
TVS Diode Single Bi-Dir 5V 600W 2-Pin SMB T/R
Dio Tvs Vwm 5.0V 600W Bidir Smb Rohs Compliant: Yes
SENSIRION SHTC1 HUMIDITY SENSOR, 0% TO 100% RH, UDFN-4
French Electronic Distributor since 1988
DIODE; Product Range:SMBJ Series; TVS Po; DIODE; Product Range:SMBJ Series; TVS Polarity:Bidirectional; Reverse Stand-Off Voltage Vrwm:5V; Clamping Voltage Vc Max:9.2V; Diode Case Style:DO-214AA; No. of Pins:2Pins; Breakdown Voltage Min:6.4V; Breakdown Voltage Max:7.25V
