Littelfuse SM24CANB-02HTG
артикул SM24CANB-02HTG
Littelfuse
производитель

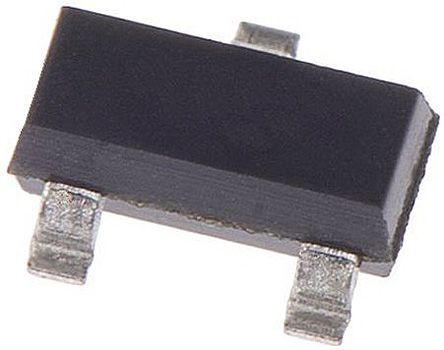

ESD Suppressor Diode TVS Bi-Dir 24V Automotive 3-Pin SOT-23 T/R
Datasheet
PDF | 800 кб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8541.10.00.80
Automotive
Yes
PPAP
Unknown
Type
TVS
Configuration
Dual
Direction Type
Bi-Directional
Number of Elements per Chip
2
Maximum Working Voltage (V)
24
Maximum Clamping Voltage (V)
50
Maximum Leakage Current (uA)
0.1
Peak Pulse Power Dissipation (W)
500
Capacitance Value (pF)
30(Typ)
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Automotive
Packaging
Tape and Reel

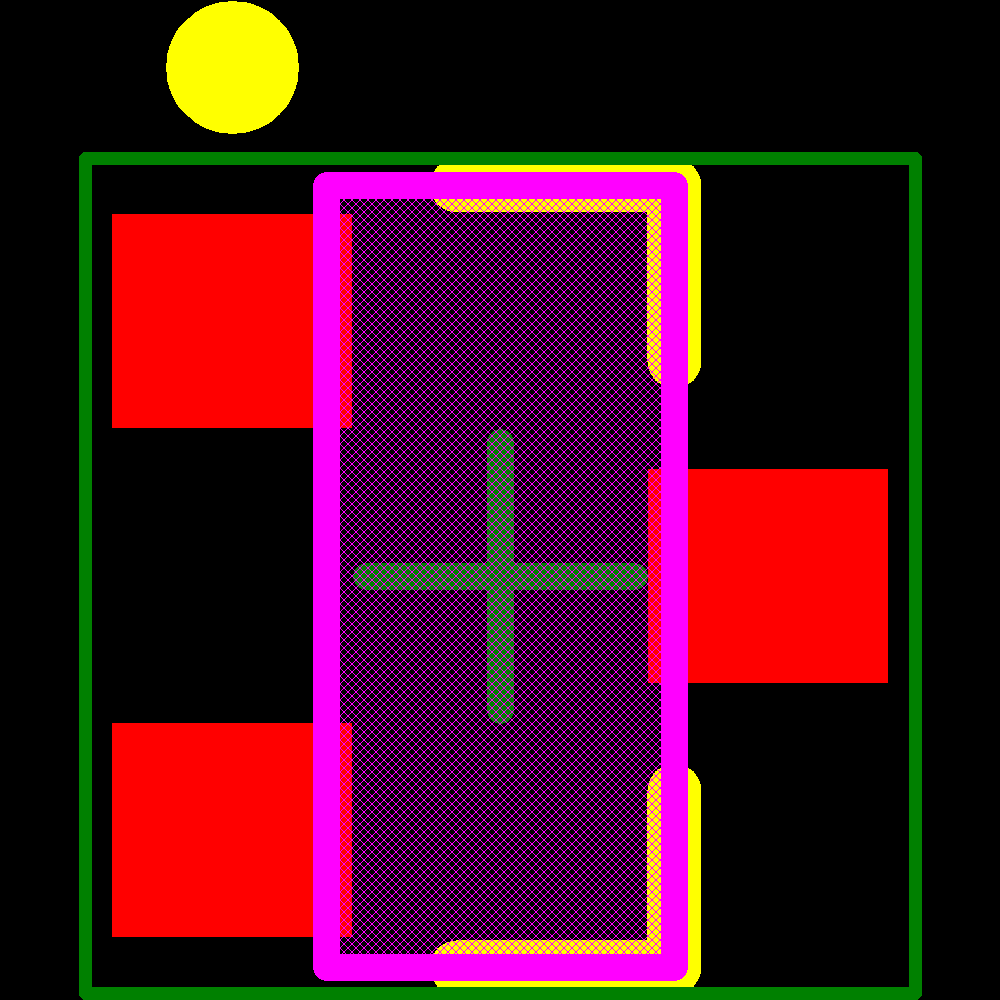

Supplier Package
SOT-23
Pin Count
3
Standard Package Name
SOT-23
Mounting
Surface Mount
Package Height
1.02(Max)
Package Length
3.04(Max)
Package Width
1.4(Max)
PCB changed
3
Lead Shape
Gull-wing
Показать все
Описание
This tvs SM24CANB-02HTG ESD protection device from Littelfuse, will prevent from a costly fix if your system is to be hit with electrostatic discharge. This device&s;s maximum clamping voltage is 50 V. This ESD diode has a maximum ESD protection device voltage of В±30(Min)@Air Gap/В±30(Min)@Contact Disc kV. This ESD diode has a minimum operating temperature of -40 В°C and a maximum of 125 В°C. Its capacitance value is 30(Typ) pF. It is made in a dual configuration.
