Vishay SMBJ15CA-E3/5B
артикул SMBJ15CA-E3/5B
Vishay
производитель

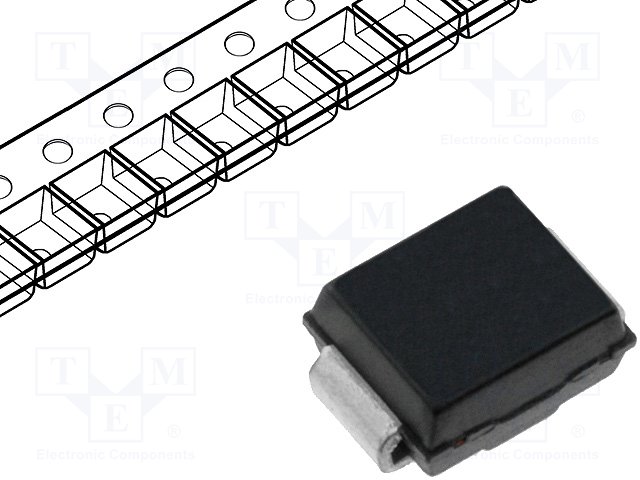

TVS Diode Single Bi-Dir 15V 600W 2-Pin SMB T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8541.10.00.80
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Configuration
Single
Direction Type
Bi-Directional
Number of Elements per Chip
1
Minimum Breakdown Voltage (V)
16.7
Maximum Clamping Voltage (V)
24.4
Maximum Reverse Stand-Off Voltage (V)
15
Maximum Peak Pulse Current (A)
24.6
Maximum Reverse Leakage Current (uA)
1
Test Current (mA)
1
Peak Pulse Power Dissipation (W)
600
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
150
Supplier Temperature Grade
Commercial
Product Weight (g)
0.096
Packaging
Tape and Reel
Supplier Package
SMB
Pin Count
2
Standard Package Name
DO-214-AA
Mounting
Surface Mount
Package Height
2.24(Max)
Package Length
4.57(Max)
Package Width
3.94(Max)
PCB changed
2
Lead Shape
J-Lead
Показать все
Описание
Get protected with this SMBJ15CA-E3/5B TVS diode manufactured from Vishay. Its maximum leakage current is 1 ОјA. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 В°C to 150 В°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
