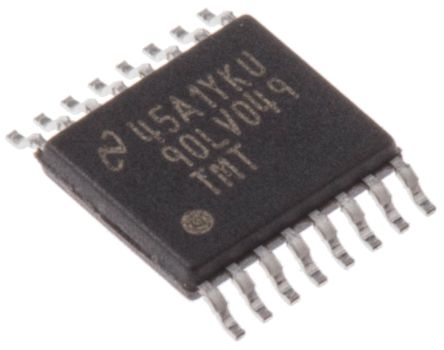

Texas Instruments DS90LV049TMTX/NOPB
артикул DS90LV049TMTX/NOPB
Texas Instruments
производитель
LVDS Driver/Receiver 400Mbps 0.45V 16-Pin TSSOP T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Function
Driver/Receiver
Number of Drivers
2
Number of Receivers
2
Number of Elements per Chip
2
Transmission Data Rate (Mbps)
400
Maximum Propagation Delay Time (ns)
3.5
Minimum Operating Frequency (MHz)
200
Maximum Operating Frequency (MHz)
250(Typ)
Input Signal Type
LVDS; LVCMOS; LVTTL
Minimum Operating Supply Voltage (V)
3
Maximum Operating Supply Voltage (V)
3.6
Differential Input Low Threshold Voltage (V)
-0.1
Differential Input High Threshold Voltage (V)
0.035
Maximum Differential Output Voltage (V)
0.45
Typical Operating Supply Voltage (V)
3.3
Maximum Input Current (uA)
12
Maximum Power Dissipation (mW)
866
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Supplier Temperature Grade
Industrial
Packaging
Tape and Reel
Pin Count
16
Standard Package Name
SOP
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
5.1(Max)
Package Width
4.5(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
400-Mbps LVDS dual high-speed differential transceiver 16-TSSOP -40 to 85
DIFF LINE DRI/RCVR, 400MBPS, TSSOP-16; Type de circuit: Driver / Récepteur de ligne différentiel; Jitter crête-crête max.: -; Courant, alimentation max.: 35mA; Température d'utilisation min: -40°C; Température de fonctionnem
Diff Line Dri/Rcvr, 400Mbps, Tssop-16; Device Type:Differential Line Driver/Receiver; Peak-To-Peak Jitter Max:-; Supply Current Max:35Ma; Operating Temperature Min:-40°C; Operating Temperature Max:85°C; Supply Voltage Min:3V; Rohs Compliant: Yes |Texas Instruments DS90LV049TMTX/NOPB
