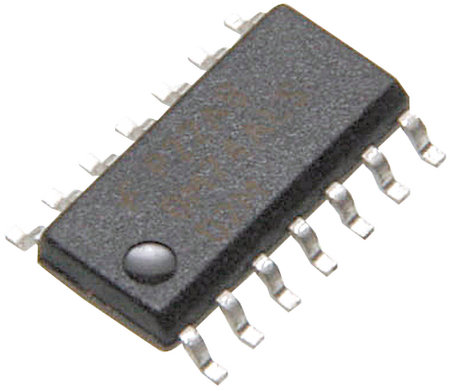

Texas Instruments DS90LV019TMTC/NOPB
артикул DS90LV019TMTC/NOPB
Texas Instruments
производитель
LVDS Driver/Receiver 100Mbps 0.45V 14-Pin TSSOP Tube
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Function
Driver/Receiver
Number of Drivers
1
Number of Receivers
1
Number of Elements per Chip
1
Transmission Data Rate (Mbps)
100
Maximum Propagation Delay Time (ns)
9
Input Signal Type
LVDS; LVTTL
Minimum Operating Supply Voltage (V)
3; 4.5
Maximum Operating Supply Voltage (V)
3.6; 5.5
Differential Input Low Threshold Voltage (V)
-0.1(Min)
Differential Input High Threshold Voltage (V)
0.1(Max)
Maximum Differential Output Voltage (V)
0.45
Typical Operating Supply Voltage (V)
3.3; 5
Maximum Input Current (uA)
15
Maximum Power Dissipation (mW)
790
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tube
Pin Count
14
Standard Package Name
SOP
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
5.1(Max)
Package Width
4.5(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
3.3-V or 5-V LVDS driver and receiver 14-TSSOP -40 to 85
Line Driver; Device Type:Driver/Receiver; Data Rate Max:100Mbps; Total Delay Time:5.8ns; Supply Voltage Min:3V; Supply Voltage Max:6V; Termination Type:SMD; Package/Case:14-TSSOP; No. of Pins:14 ;RoHS Compliant: Yes
IC, LVDS DRIVER/RECEIVER, TSSOP-14; Supp; IC, LVDS DRIVER/RECEIVER, TSSOP-14; Supply Current:48mA; Driver Case Style:TSSOP; No. of Pins:14; Supply Voltage Range:3V to 3.6V; Operating Temperature Range:-40°C to +85°C; MSL:MSL 1 - Unlimited; Data Rate Max:100Mbps
