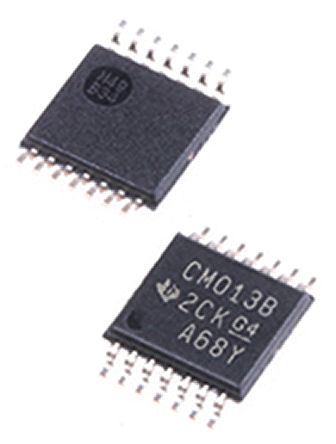

Texas Instruments CD4013BM
артикул CD4013BM
Texas Instruments
производитель
Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOIC Tube
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Logic Family
CD4000
Logic Function
D-Type
Number of Channels per Chip
2
Number of Elements per Chip
2
Number of Element Inputs
1
Number of Element Outputs
1
Bus Hold
No
Set/Reset
Set/Reset
Polarity
Inverting/Non-Inverting
Triggering Type
Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)
300@5V; 130@10V; 90@15V
Absolute Propagation Delay Time (ns)
400
Process Technology
CMOS
Input Signal Type
Single-Ended
Maximum Low Level Output Current (mA)
4.2(Min)
Maximum High Level Output Current (mA)
-4.2(Min)
Minimum Operating Supply Voltage (V)
3
Typical Operating Supply Voltage (V)
3.3; 5; 9; 12; 15
Maximum Operating Supply Voltage (V)
18
Maximum Quiescent Current (mA)
0.02
Propagation Delay Test Condition (pF)
50
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
125
Supplier Temperature Grade
Military
Packaging
Tube
Standard Package Name
SOP
Pin Count
14
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
8.75(Max)
Package Width
4(Max)
PCB changed
14
Lead Shape
Gull-wing
Показать все
Описание
Think of Texas Instruments&s; CD4013BM flip flop device in the event you need to save or retrieve your circuit&s;s state information quickly. It has a differential output signal. This flip flop has an operating temperature range of -55 В°C to 125 В°C. This device comes in tube packaging. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
