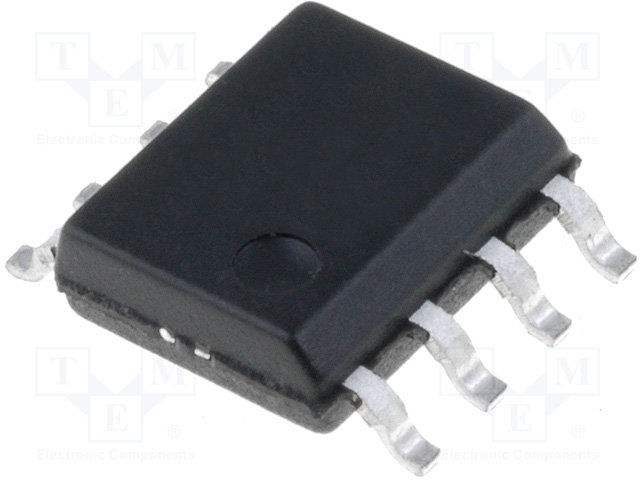

Texas Instruments LM3525MX-L/NOPB
артикул LM3525MX-L/NOPB
Texas Instruments
производитель
Hi Side Single 5.5V 1A 8-Pin SOIC T/R
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Type
High Side Switch
Number of Switches
1
Current Limit (A)
1
Enable Logic
Active Low
Minimum Input Voltage (V)
2.7
Maximum Input Voltage (V)
5.5
Number of Outputs
1
Minimum Output Current (A)
0.5
Output Voltage Range (V)
-0.3 to 6
Supply Current (mA)
0.065
Operating Supply Voltage Range (V)
2.7 to 5.5
Maximum Power Dissipation (mW)
700
Switch On Resistance (mOhm)
120
Typical UVLO Threshold (V)
1.9
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Typical Turn-On Delay Time (us)
200
Typical Turn-Off Delay Time (us)
20
Typical Rise Time (us)
200
Typical Fall Time (us)
20
Packaging
Tape and Reel
Supplier Package
SOIC
Pin Count
8
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
5(Max)
Package Width
3.98(Max)
PCB changed
8
Lead Shape
Gull-wing
Показать все
Описание
0.5A loading, 2.7-5.5V, 80mΩ USB power switch 8-SOIC -40 to 125
USB Power SW Hi Side Single 5.5V 2.25A 8-Pin SOIC N T/R
Buffer/Inverter Based Peripheral Driver, 1 Driver, 1A, PDSO8
Usb Power Switch, 1 Port, Soic-8; Usb Ic Type:usb Power Switch And Over Current Protection; Usb Standard:usb 1.1, 2.0; Supply Voltage Min:2.7V; Supply Voltage Max:5.5V; Interface Case Style:soic; No. Of Pins:8Pins; Data Rate:-; No. Rohs Compliant: Yes
IC POWER SW USB SGL PORT 8-SOIC
IC PWR SWITCH P-CHAN 1:1 8SOIC
French Electronic Distributor since 1988
1 A BUF OR INV BASED PRPHL DRVR PDSO8
