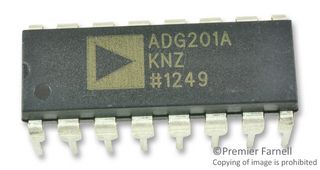

Analog Devices ADG201AKPZ
артикул ADG201AKPZ
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Type
Analog Switch
Configuration
Quad SPST
Switch Architecture
SPST
Number of Channels per Chip
4
Number of Inputs per Chip
4
Number of Outputs per Chip
4
Chip Enable Signals
Yes
Polarity
Non-Inverting
Maximum Turn-On Time (ns)
300@В±15V
Maximum Turn-Off Time (ns)
250@В±15V
Input Signal Type
Single
Output Signal Type
Single
Maximum Single Supply Voltage (V)
25
Maximum Dual Supply Voltage (V)
В±22
Typical Supply Current (mA)
0.6@15V/-0.1@-15V
Maximum Supply Current (mA)
2@15V/-0.2@-15V@-40C to 85C
Maximum High Level Output Current (mA)
30
Maximum On Resistance (Ohm)
90@В±15V
Maximum On Resistance Range (Ohm)
80 to 100
Power Supply Type
Single; Dual
Maximum Power Dissipation (mW)
470
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
85
Packaging
Tube
Pin Count
20
Standard Package Name
LCC
Supplier Package
PLCC
Mounting
Surface Mount
Package Height
3.68(Min)
Package Length
9.04(Max)
Package Width
9.04(Max)
PCB changed
20
Lead Shape
J-Lead
Показать все
Описание
60 Ohm, Quad SPST Switch
Analog Switch Quad SPST 20-Pin PLCC Tube
SPST, 1 Func, 1 Channel, CMOS, PQCC20
1-CHANNEL SGL POLE SGL THROW SWITCH PQCC20
IC SWITCH SPST-NCX4 90OHM 20PLCC
