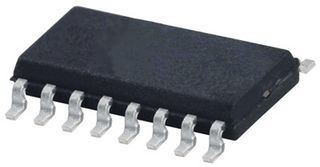

Texas Instruments TL494CD
артикул TL494CD
Texas Instruments
производитель
Voltage Mode PWM Controller 40V 200mA 300kHz 16-Pin SOIC Tube
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Type
Voltage Mode PWM Controller
Control Method
Voltage
Topology
Boost; Flyback; Buck; Half-Bridge; Push-Pull; Forward; Full-Bridge
Number of PWM Outputs
2
Switching Frequency (kHz)
300
Maximum Duty Cycle (%)
45(Typ)
Output Current (mA)
200(Max)
Rise Time (ns)
100
Fall Time (ns)
40
Output Voltage (V)
40(Max)
Operating Supply Voltage (V)
7 to 40
Minimum Operating Supply Voltage (V)
7
Maximum Operating Supply Voltage (V)
40
Maximum Supply Current (mA)
7.5(Typ)
Adjustable Output
No
On/Off Pin
No
Synchronous Pin
No
Minimum Operating Temperature (В°C)
0
Maximum Operating Temperature (В°C)
70
Packaging
Tube
Pin Count
16
Standard Package Name
SOP
Supplier Package
SOIC
Mounting
Surface Mount
Package Height
1.5(Max)
Package Length
10(Max)
Package Width
4(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
Looking to encode messages from pulsating voltages? Use this TL494CD voltage mode PWM controller from Texas Instruments to get the job done! With an output that has a voltage of 40(Max) V, this is power management at its best. This voltage mode driver supports boost|buck|flyback|forward|full-bridge|half-bridge|push-pull topology. Its 2 PWM outputs produce a current of 200(Max) mA. This part offers a switching frequency of 300 kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage mode driver&s;s maximum duty cycle is 45(Typ) %. This voltage mode driver has an operating temperature range of 0 В°C to 70 В°C. This device has a minimum operating supply voltage of 7 V and a maximum of 40 V.
