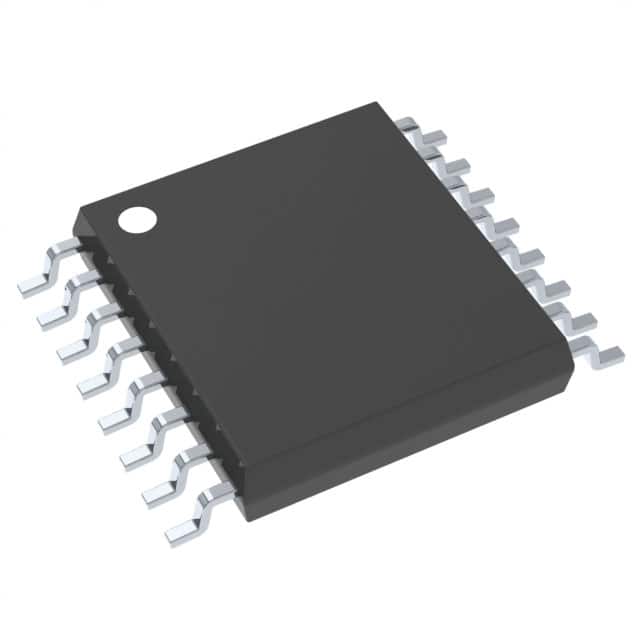

Texas Instruments UCC28220PWR
артикул UCC28220PWR
Texas Instruments
производитель
Current Mode PWM Controller 100A 1100kHz 16-Pin TSSOP T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
SVHC
Yes
Automotive
No
PPAP
No
Type
Current Mode PWM Controller
Control Method
Current Mode PWM Controller
Topology
Forward; Flyback
Number of PWM Outputs
2
Switching Frequency (kHz)
1100
Maximum Duty Cycle (%)
77
Rise Time (ns)
10
Output Current (mA)
100000(Max)
Fall Time (ns)
10
Minimum Operating Supply Voltage (V)
8
Maximum Operating Supply Voltage (V)
14.5
Maximum Supply Current (mA)
6
Maximum Power Dissipation (mW)
400
Adjustable Output
No
On/Off Pin
No
Synchronous Pin
No
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
105
Packaging
Tape and Reel
Pin Count
16
Standard Package Name
SOP
Supplier Package
TSSOP
Mounting
Surface Mount
Package Height
1.05(Max)
Package Length
5.1(Max)
Package Width
4.5(Max)
PCB changed
16
Lead Shape
Gull-wing
Показать все
Описание
Dual Switching Controller, Current-mode, 0.01A, 1100kHz Switching Freq-Max, BICMOS, PDSO16
Dual Interleaved PWM controller with Programmable max duty cycle 10V/8V UVLO 16-TSSOP -40 to 105
Pulse Width Modulation (PWM) Controller IC; Frequency:2000kHz; Power Dissipation, Pd:400mW; No. of Pins:16; Operating Temperature Range:-40°C to +105°C; Control Mode:Current; Leaded Process Compatible:Yes; Number of PWM Outputs:2 ;RoHS Compliant: Yes
