Panasonic ELGTEA2R2NA
артикул ELGTEA2R2NA
Panasonic
производитель

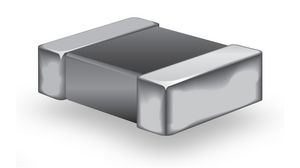

Inductor Power Shielded Multi-Layer 2.2uH 30% 1MHz 0.8A 0.2Ohm DCR 0805 T/R
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Obsolete
HTS
8504.50.80.00
Automotive
No
PPAP
No
Type
Power
Technology
Multi-Layer
Protection Style
Shielded
Inductance (H)
2.2u
Tolerance
30%
Inductance Test Frequency (Hz)
1M
Maximum DC Current (A)
0.8
Maximum DC Resistance (Ohm)
0.2
Minimum Self Resonant Frequency (Hz)
55M
Number of Terminals
2
Case Size
0805
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Packaging
Tape and Reel
Product Length (mm)
2.2
Mounting
Surface Mount
Product Depth (mm)
1.45
Product Height (mm)
1
