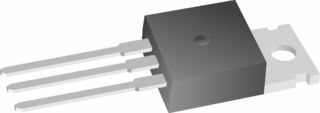

Littelfuse Q4015LTHTP
артикул Q4015LTHTP
Littelfuse
производитель
Thyristor Quadrac 400V 15A(RMS) 200A 3-Pin(3+Tab) TO-220AB Isolated Tube
Datasheet
PDF | 777 кб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8541.30.00.80
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Type
Quadrac
Maximum Rate of Rise of Off-State Voltage (V/us)
925(Min)
Maximum Rate of Rise of On-State Current (A/us)
100
Surge Current Rating (A)
200
Maximum Holding Current (mA)
70
Repetitive Peak Reverse Voltage (V)
400
Peak On-State Voltage (V)
1.6
Repetitive Peak Forward Blocking Voltage (V)
400
Maximum Breakover Voltage (V)
43
RMS On-State Current (A)
15
Repetitive Peak Off-State Current (mA)
0.05
Maximum Breakover Current (mA)
0.025
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Packaging
Tube
Supplier Package
TO-220AB Isolated
Pin Count
3
Standard Package Name
TO-220
Mounting
Through Hole
Package Height
9.4(Max)
Package Length
10.67(Max)
Package Width
4.78(Max)
PCB changed
3
Tab
Tab
Показать все
Описание
QxxxxLTx Series - Teccor® 4/6/8/10/15Amp QUADRAC® Devices, TO-220AB, RoHS
Thyristor Quadrac 400V 15A(RMS) 200A 3-Pin(3+Tab) TO-220AB Isolated Tube
Qdrc Alt 400V 15A 33/43V To220 Iso / Tube
