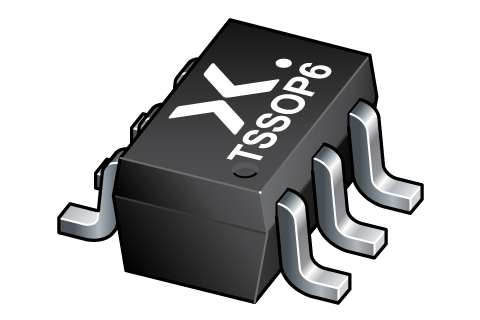

Nexperia PUMD3,115
Transistor Digital BJT NPN/PNP 50 Volt 100mA Automotive 6-Pin TSSOP
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 2-Element, NPN and PNP, Silicon
1 PCS NPN,1 PCS PNP - Pre-Biased(Dual) 300mW 100mA 50V SOT-363 Digital Transistors ROHS
PUMD3 - NPN/PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 10 kΩ
PUMD3 Series 40 V 100 mA Surface Mount NPN/PNP Digital Transistor - SOT-363
Bipolar Transistor Array; Module Configuration:Dual; Transistor Polarity:NPN & PNP; Collector Emitter Voltage, V(br)ceo:50V; Power Dissipation, Pd:200mW; DC Collector Current:100mA; DC Current Gain Max (hfe):30 ;RoHS Compliant: Yes
TRANSISTOR, DIGITAL, DUAL, SOT-363; Digital Transistor Polarity: NPN and PNP Complement; Collector Emitter Voltage V(br)ceo: 50V; Continuous Collector Current Ic: 100mA; Base Input Resistor R1: 10kohm; Base-Emitter Resistor R2: 10kohm; Resistor Ratio, R1 / R2: -; RF Transistor Case: SOT-363; No. of Pins: 6 Pin; Product Range: PUMD3 Series; Automotive Qualification Standard: -; MSL: MSL 1 - Unlimited; SVHC: No SVHC (27-Jun-2018); Collector Emitter Saturation Voltage Vce(on): 150mV; Continuous Collector Current Ic Max: 100mA; Current Ic Continuous a Max: 100mA; Current Ic hFE: 5mA; DC Collector Current: 100mA; DC Current Gain hFE: 30hFE; Full Power Rating Temperature: 25°C; Hfe Min: 30; Module Configuration: Dual; No. of Pins: 6Pins; No. of Transistors: 2; Operating Temperature Max: 150°C; Operating Temperature Min: -65°C; Operating Temperature Range: -65°C to +150°C; Power Dissipation Pd: 200mW; Power Dissipation Ptot Max: 300mW; Resistance R1: 10kohm; Resistance R2: 10kohm; Transistor Case Style: SOT-363; Transistor Polarity: NPN, PNP
