Analog Devices, Inc. ADRF5024BCCZN
артикул ADRF5024BCCZN
Analog Devices, Inc.
производитель

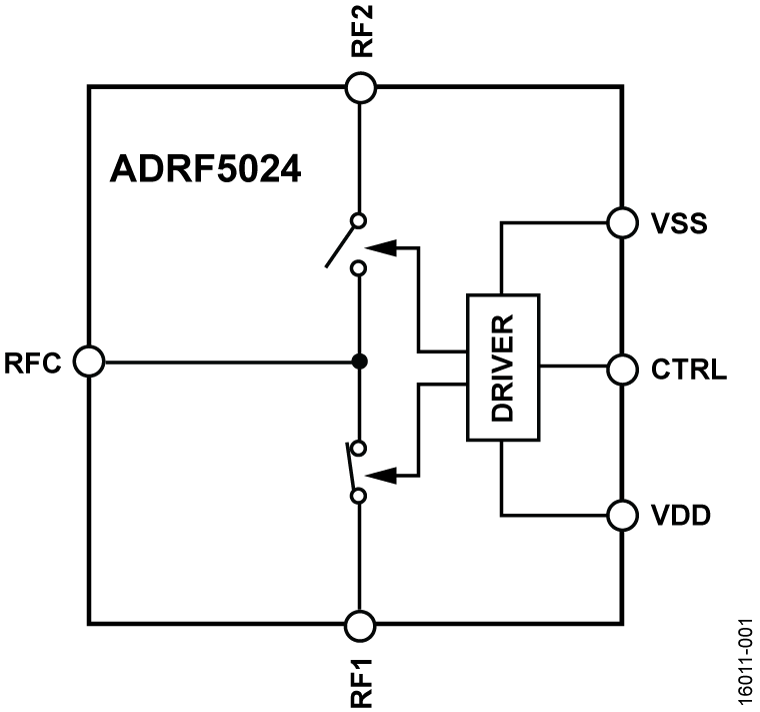

RF Switch SPDT 100MHz to 44GHz 35dB 12-Pin LGA EP T/R
Datasheet
PDF | 438 кб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Switch Type
SPDT
Switch Configuration
Single SPDT
Number of Switches
1
Switching Speed (ns)
2(Typ)
Frequency Band (MHz)
100 to 44000
Maximum Frequency (MHz)
44000
Minimum Isolation Voltage (dB)
35(Typ)
Maximum Insertion Loss (dB)
2.1(Typ)
Typical Input 1dB Compressed Power (dBm)
27.5
Technology
Silicon
Minimum Operating Supply Voltage (V)
3.15; -3.45
Typical Operating Supply Voltage (V)
3.3; -3.3
Maximum Operating Supply Voltage (V)
3.45; -3.15
Typical Supply Current (mA)
-0.12; 0.014
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
105
Packaging
Tape and Reel
Supplier Package
LGA EP
Pin Count
12
Standard Package Name
LGA
Mounting
Surface Mount
Package Height
0.75
Package Length
2.25
Package Width
2.25
PCB changed
12
Lead Shape
No Lead
Показать все
