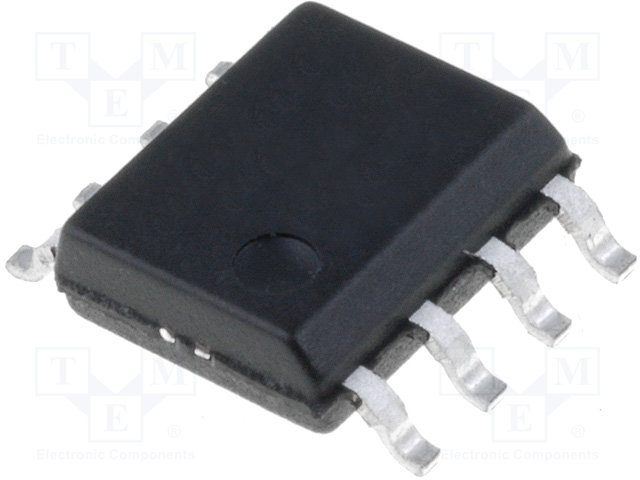

Vishay SI4048DY-T1-GE3
артикул SI4048DY-T1-GE3
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Obsolete
HTS
8541.29.00.95
Automotive
No
PPAP
No
Category
Power MOSFET
Configuration
Single Quad Drain Triple Source
Process Technology
TrenchFET
Channel Mode
Enhancement
Channel Type
N
Number of Elements per Chip
1
Maximum Drain Source Voltage (V)
30
Maximum Gate Source Voltage (V)
В±20
Maximum Gate Threshold Voltage (V)
3
Maximum Continuous Drain Current (A)
19.3
Maximum Gate Source Leakage Current (nA)
100
Maximum IDSS (uA)
1
Maximum Drain Source Resistance (mOhm)
8.5@10V
Typical Gate Charge @ Vgs (nC)
15@4.5V; 34@10V
Typical Gate Charge @ 10V (nC)
34
Typical Input Capacitance @ Vds (pF)
2060@15V
Maximum Power Dissipation (mW)
2500
Typical Fall Time (ns)
8
Typical Rise Time (ns)
9; 11
Typical Turn-Off Delay Time (ns)
21; 18
Typical Turn-On Delay Time (ns)
19; 10
Minimum Operating Temperature (В°C)
-55
Maximum Operating Temperature (В°C)
150
Packaging
Tape and Reel
Supplier Package
SOIC N
Pin Count
8
Standard Package Name
SOP
Mounting
Surface Mount
Package Height
1.55(Max)
Package Length
5(Max)
Package Width
4(Max)
PCB changed
8
Lead Shape
Gull-wing
Показать все
Описание
Thanks to Vishay, both your amplification and switching needs can be taken care of with one component: the SI4048DY-T1-GE3 power MOSFET. Its maximum power dissipation is 2500 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 В°C to 150 В°C. This device utilizes TrenchFET technology.
