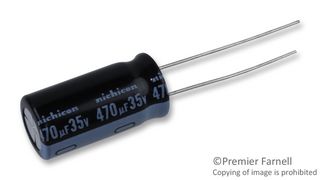

Nichicon UHE1V471MPD
артикул UHE1V471MPD
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8532.22.00.20
Automotive
No
PPAP
No
Type
Electrolytic
Capacitance Value
470uF
Tolerance
20%
Voltage
35VDC
Equivalent Series Resistance Type
Low
Maximum Impedance (Ohm)
0.18@-10В°C@100kHz; 0.046@20В°C@100kHz
IR (mA)
1400
IL (uA)
164.5@2Min
Lifetime (h)
7000
Polarity
Polar
Construction
Aluminum Cylindrical Can
Mounting
Through Hole
Termination Style
Radial
Number of Terminals
2
Terminal Pitch (mm)
5
Wire Form
Long Lead
Size (mm)
10 X 20
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
105
Packaging
Bulk
Product Diameter (mm)
10
Product Height (mm)
20
Lead Diameter (mm)
0.6
Показать все
Описание
Thanks to Nichicon, you&s;ll never miss low-end frequencies with their electrolytic UHE1V471MPD aluminum capacitor. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 В°C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 164.5@2Min ОјA. Its capacitance value is 470uF. The UHE1V471MPD aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 10 mm. It has a tolerance of 20%.
