United Chemi-Con EKZE500ELL471MK20S
артикул EKZE500ELL471MK20S
United Chemi-Con
производитель
Cap Aluminum Lytic 470uF 50V 20% (12.5 X 20mm) Radial 5mm 2050mA 5000h 105В°C Bulk
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8532.22.00.20
Automotive
No
PPAP
No
Type
Electrolytic
Capacitance Value
470uF
Tolerance
20%
Voltage
50VDC
Equivalent Series Resistance Type
Low
Maximum Impedance (Ohm)
0.027@20В°C@100kHz; 0.068@-10В°C@100kHz
IR (mA)
2050
IL (uA)
235@2Min
Lifetime (h)
5000
Polarity
Polar
Special Features
Low Impedance
Construction
Aluminum Cylindrical Can
Mounting
Through Hole
Termination Style
Radial
Number of Terminals
2
Terminal Pitch (mm)
5
Wire Form
Long Lead
Size (mm)
12.5 X 20
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
105
Packaging
Bulk
Product Diameter (mm)
12.5
Product Height (mm)
20
Lead Diameter (mm)
0.6
Показать все
Описание
The pure aluminum anode on the electrolytic EKZE500ELL471MK20S electrolytic capacitor, designed from United Chemi-con, is the solution to your signal filtering needs. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 В°C. Its capacitance value is 470uF. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 235@2Min ОјA. The EKZE500ELL471MK20S aluminum electrolytic capacitor has a radial termination style.
Похожие товары

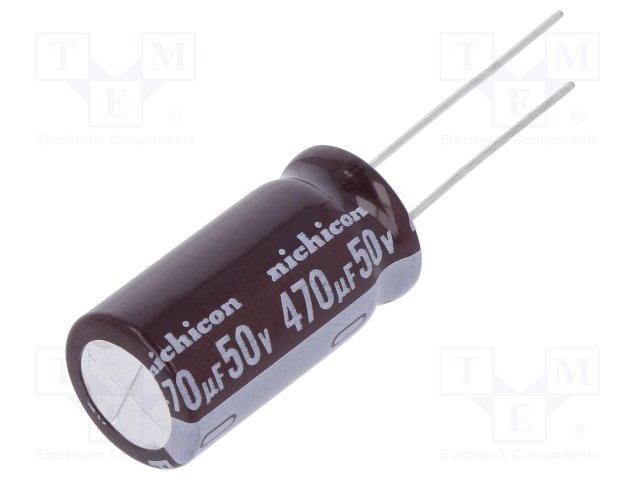

Nichicon
