Taiyo Yuden MDMK2020T2R2MM
артикул MDMK2020T2R2MM
Taiyo Yuden
производитель
Inductor Power Wirewound 2.2uH 20% 1MHz Metal 1.45A 0.109Ohm DCR T/R
Datasheet
PDF | 339 кб
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8504.50.80.00
Automotive
No
PPAP
No
Type
Power
Technology
Wirewound
Core Material
Metal
Inductance (H)
2.2u
Tolerance
20%
Inductance Test Frequency (Hz)
1M
Maximum DC Current (A)
1.45
Maximum Saturation Current (A)
1.75
Maximum DC Resistance (Ohm)
0.109
Number of Terminals
2
Minimum Operating Temperature (В°C)
-40
Maximum Operating Temperature (В°C)
125
Packaging
Tape and Reel
Product Length (mm)
2.15
Mounting
Surface Mount
Product Depth (mm)
2.15
Product Height (mm)
1.2
Показать все
Описание
Inductor Power Wirewound 2.2uH 20% 1MHz Metal 1.45A 109mOhm DCR T/R
Metal Core SMD Power Inductors (MCOIL™, MD series), 1.45A, 2.2 uH, ± 20 %, MDMK2020, RoHS
FIXED IND 2.2UH 1.45A 109MOHM SM
FIXED IND 2.2UH 1.45A 109 MOHM
Product Description Demo for Development.
INDUCTOR, SHIELDED, 2.2UH, 1.75A, SMD; Inductance:2.2µH; RMS Current (Irms):1.45A; Inductor Construction:Shielded; Saturation Current (Isat):1.75A; Product Range:MD Series; Inductor Case / Package:-; DC Resistance Max:0.109ohm RoHS Compliant: Yes
Похожие товары
TDK
Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Ferrite 2.2A 0.081Ohm DCR 1515 T/R
Murata
Inductor Power Chip Shielded Wirewound 2.2uH 20% 1MHz Ferrite 1.75A 0.0816Ohm DCR 1212 T/R
Murata
Inductor Power Chip Shielded Wirewound 2.2uH 20% 1MHz Ferrite 1.47A 0.1608Ohm DCR 1008 T/R

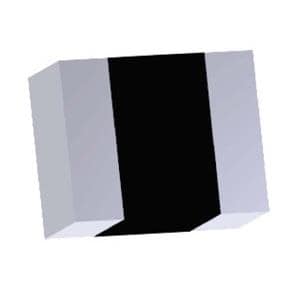

Abracon
