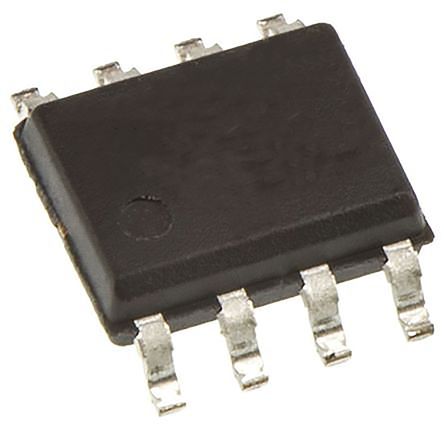

Cypress Semiconductor CY2305SXC-1H
артикул CY2305SXC-1H
Cypress Semiconductor
производитель
Zero Delay Buffer 5-Out LVCMOS Single-Ended 8-Pin SOIC N Tube
Datasheet
PDF | 534 кб
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant
ECCN (US)
EAR99
Part Status
Active
HTS
8542.39.00.01
Automotive
No
PPAP
No
Type
Clock Driver
Number of Inputs
1
Number of Outputs
5
Number of Banks
1
Programmability
No
Minimum Input Frequency (MHz)
10
Maximum Input Frequency (MHz)
133
Minimum Output Frequency (MHz)
10
Maximum Output Frequency (MHz)
133.33
Maximum Cycle to Cycle Jitter (ps)
200
Maximum Output Skew (ps)
250
Maximum Fall Time (ns)
1.5
Maximum Rise Time (ns)
1.5
Spread Spectrum
No
Maximum Duty Cycle (%)
60
Input Logic Level
LVCMOS; LVTTL
Output Logic Level
LVCMOS
Input Signal Type
Single-Ended
Output Signal Type
Single-Ended
Minimum Operating Supply Voltage (V)
3
Typical Operating Supply Voltage (V)
3.3
Maximum Operating Supply Voltage (V)
3.6
Minimum Operating Temperature (В°C)
0
Maximum Operating Temperature (В°C)
70
Supplier Temperature Grade
Commercial
Packaging
Tube
Standard Package Name
SOP
Pin Count
8
Supplier Package
SOIC N
Mounting
Surface Mount
Package Height
1.48(Max)
Package Length
4.98(Max)
Package Width
3.99(Max)
PCB changed
8
Lead Shape
Gull-wing
Показать все
Описание
CY2305 Series Single PLL 3.3 V 133 MHz Zero Delay Clock Buffer SMT - SOIC-8
Zero Delay PLL Clock Buffer Single 10MHz to 133MHz 8-Pin SOIC
2305 SERIES PLL BASED CLOCK DRIVER 8 TRUE OUTPUT(S) 0 INVERTED OUTPUT(S) PDSO8
Clock Buffer, 133.33Mhz, 5 O/p, Soic-8; Clock Ic Type:clock Buffer; Frequency:133.33Mhz; No. Of Outputs:5Outputs; Supply Voltage Min:3V; Supply Voltage Max:3.6V; Clock Ic Case Style:soic; No. Of Pins:8Pins; Operating Temperature Rohs Compliant: Yes
