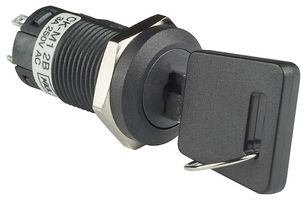

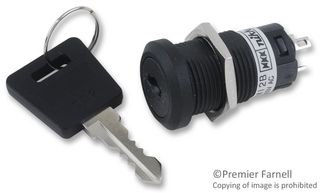

NKK Switches CKM12BFW01
артикул CKM12BFW01
NKK Switches
производитель
Switch Key Lock ON None ON SPDT 90В° Flat Key 3A 250VAC Solder Lug 30000Cycles Panel Mount
Datasheet
PDF | 470 кб
Отсортировать цены
по количеству
по количеству
По данному товару предложений не найдено. Оставьте заявку, и мы вам перезвоним.
Технические параметры
EU RoHS
Compliant with Exemption
ECCN (US)
EAR99
Part Status
Active
HTS
8536.50.90.65
SVHC
Yes
SVHC Exceeds Threshold
Yes
Automotive
No
PPAP
No
Type
High Security
Pole Throw Configuration
SPDT
Switch Configuration
ON None ON
Key Style
Flat Key
Maximum Current Rating (A)
3@250VAC
Maximum AC Voltage Rating (V)
250
Dielectric Strength
1000VAC
Minimum Insulation Resistance (MOhm)
1000
Maximum Contact Resistance (mOhm)
20
Electrical Life (Cycles)
10000
Mechanical Life (Cycles)
30000
Angle of Throw (В°)
90
Mounting
Panel Mount
Termination Style
Solder Lug
Number of Positions
2
Terminal Length (mm)
5
Bezel Style
Round
Seal Location
Interior Construction/Terminals
Seal Description
N/A/Epoxy
Key Removable Positions
1
Base Material
Liquid Crystal Polymer
Housing Material
Glass Fiber/Polybutylene Terephthalate
Body Orientation
Straight
Minimum Operating Temperature (В°C)
-25
Maximum Operating Temperature (В°C)
70
Bushing Length (mm)
16
Body Depth (mm)
10.2
Product Length (mm)
19
Product Depth (mm)
19
Product Height (mm)
35.2
Показать все
Описание
Use this high security CKM12BFW01 Keylock switch from NKK Switches to power on and off your project with the turn of a key. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 250VAC. This switch key has an operating temperature range of -25 В°C to 70 В°C. The CKM12BFW01 switch key has a solder lug termination style. This product is 19 mm long, 35.2 mm tall and 19 mm deep. The maximum AC voltage rating is 250 VAC.
